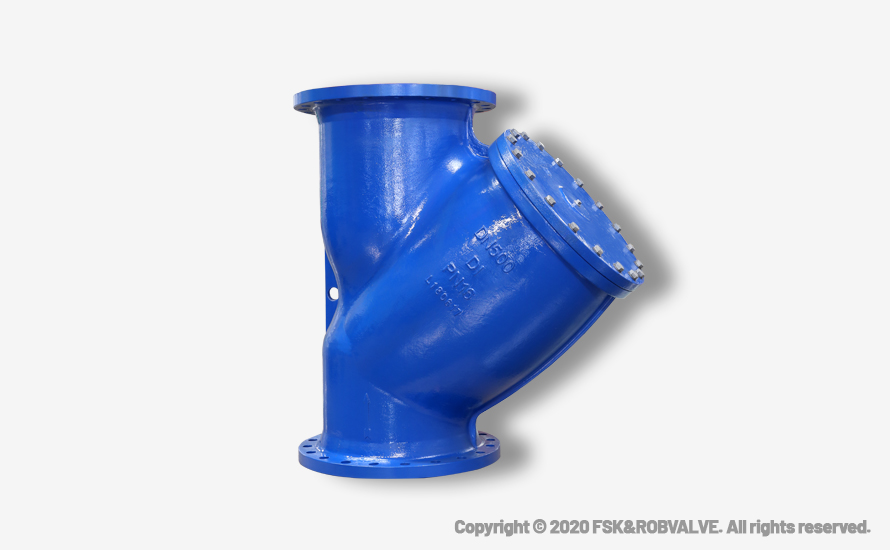

YTS1 YTS2 Strainer
| Connection standards: | EN 1092, ISO 7005, ASME B16.1 |
| Face to face: | EN 558 (16 serial) |
| Testing standard: | EN12266-1 |
| Working pressure: | PN10/16: DN15-DN600 PN25: DN15-DN300 |
| Working Temperatura: | Rubber: -15°C - +130°C Metal+Graphite gasket: -15°C - +250°C |
Applications
Valve body materials: cast iron, ductile iron, carbon steel, stainless steel, copper and special alloy (cast iron, ductile iron, carbon steel surface resin spraying)
This product is suitable for cold and hot circulating water system, oil and water supply system, collecting impurities and protecting pipes.
The product is ACS and WRAS certified and can be used in drinking water and medical and food applications.
If you have special technical needs, please consult the company.
Product features
It is used to collect granular impurities and other dirt flowing through the pipeline medium. The collected dirt can be removed through the sewage outlet, so as to improve the cleanliness of the medium and the service life of the pipeline system.
The strainer is made of stainless steel which is strong and corrosion-resistant. The structure is stable and the filtration performance is strong. The strainer can be prepared according to a variety of filtration media.
The whole structure is reliable, the flow resistance is small, the flow coefficient is not affected, and the discharge form is convenient.
According to the requirements of working conditions, magnetic filter can also be added for the adsorption of metal impurities in water.
Seawater working condition see seawater valve special page
