BAV5 C Ball Metal Seat Valve


BAV5 C Ball Metal Seat Valve

Size range:
2"-48"(DN50 - DN1200)
Pressure Rating:
CLASS150 - CLASS900(PN16 - PN150)
Temperature Range:
-196℃~ +650℃ (-320℉ ~ +1202℉)
Body Construction:
Side Entry, 2-piece or 3-piece
Material forming process:
cast / forged
Operation type:
manual, worm gear, pneumatic, electric, etc.

Standards and Specifications

Design and manufacturing standards:
API 6D, API 608, MSS SP-72
Temperature and pressure rating:
ASME B16.34, EN 12516-1
Mounting flange:
BS EN ISO 5211
Connection flange:
ASME B16.5, ASME B16.47, ASME B16.11, ASME B1.20.1, ISO 7005, EN 1092-1
Face to face:
ASME B16.10, ISO 5752, EN 588, EN 12982
Inspection and testing standard:
API 598, API 6D, EN 12266-1, EN 12284
Low fugitive emission conform:
ISO 15848-1, TA-Luft, EPA Method 21


Industrial Applications

Coal chemical industry, coal-to-oil, coal-to-olefin, etc.

Oil refining and catalytic cracking unit, Polysilicon industry, Polyurethane industry

Product features

1.Single seat, full bore design, reliable sealing performance, convenient operation, high flow capacity and low flow resistance.

2.Quarter turn Trim, low operating torque, trip seal surface apart from full closure, no friction, no wear, extended service life.

3.With sealing surface self-cleaning function, when the valve core is closed, it can automatically clean the particles and impurities bonded to the sealing surface.

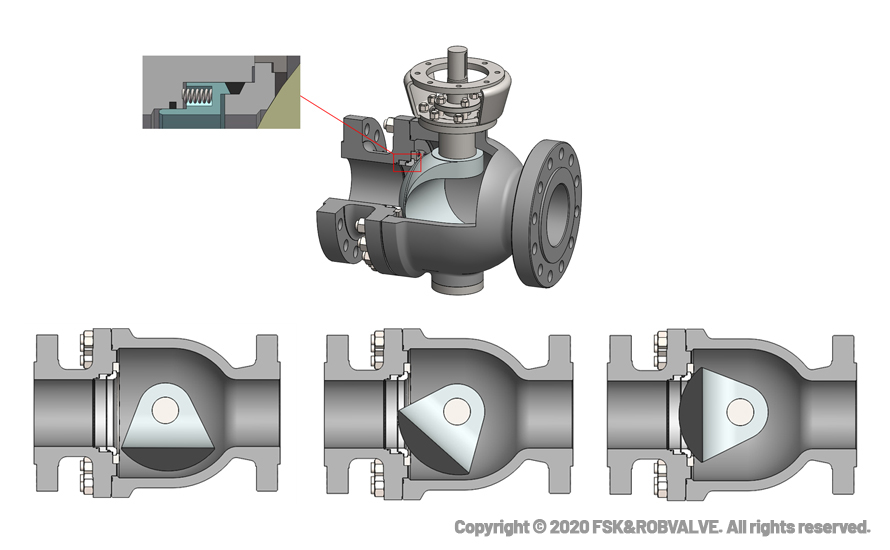

4.Hemisphere structure, eccentric design, compared with the whole ball has a better cleaning function, not easy to accumulate slag, suitable for all kinds of harsh conditions.

5.Valve seat and valve core with eccentric - wedge tight seal and spring pre - tight seat seal, torque seal design.

6.There is no media retention area inside the valve body and it will not adhere to the valve body cavity.

7.Intrinsic firesafe, anti-static design.
