BUV33 Cryogenic Triple Offset Valve
| Size range: | 3"-48"(DN80- DN1200) |
| Pressure Rating: | Class150, Class300, Class600, PN25, PN40, PN63, PN100 |
| Connection type: | wafer, lug, double flanged, butt-welded. |
| Temperature range: | -196℃~+250℃(-321℉~+482℉) |
| Operation type: | manual, pneumatic, electric, hydraulic, etc. |
| Applicable range: | Applicable media: Suitable for LNG liquefaction storage and transportation, air separation unit, hydrocarbon low temperature distillation, aerospace applications, HIPPS and main equipment protection. |
| Note: | Larger sizes and higher pressures can consulted from factory. |
Standards and Specifications
| Design and manufacture standard: | API 609, EN 593 |
| Temperature and pressure rating: | ASME B16.34, EN 12516-1 |
| Low temperature standard: | BS 6364, BS EN 1626, MSS SP-134 |
| Mounting flange: | BS EN ISO 5211 |
| Connection flange: | ASME B16.5, ASME B16.47, ISO 7005, EN 1092-1 |
| Face to face: | API 609, MSS SP-68, ISO 5752, EN 558 |

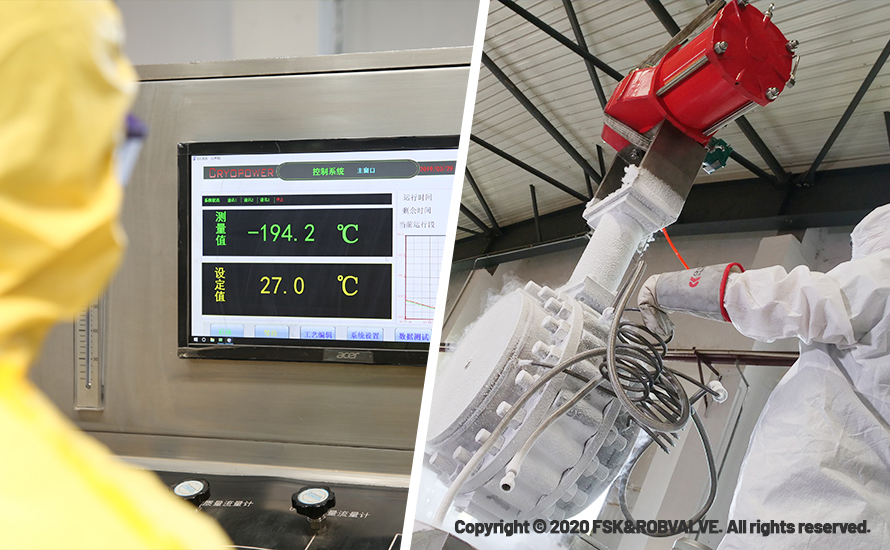

| Inspection and testing standard: | BS 6364 |
| Valve mark conform to: | MSS SP-25, EN 19 |
| Low emission conform to: | ISO 15848-1, TA-Luft, EPA Method 21 |
